Overview

NAW is equipped with world class machines with skilled workforce to cater the quality needs for both National and International market. Apart from a large concentration of Computerised Numerically Controlled (CNC) Machines, NAW has sophisticated gear profile testing machines, 3 axis Co-ordinate measuring machine, ensuring a high degree of precision in the manufacture and testing of gear components to DIN / AGMA international specifications. as well as full- fledged testing/calibrating lab to check chemical analysis of raw material.

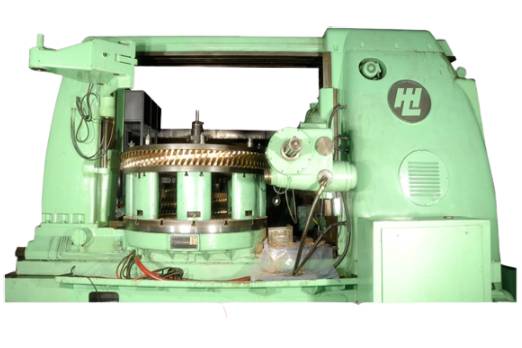

Gear Hobbing

Module – 1 to 30, Max. Diameter – 1600, Max. Face Width – 900 mm (Spur)

Worm Wheel Hobbing

Max. Diameter – 2000 mm

HOBBING

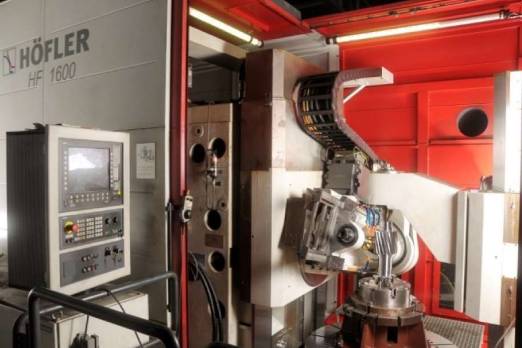

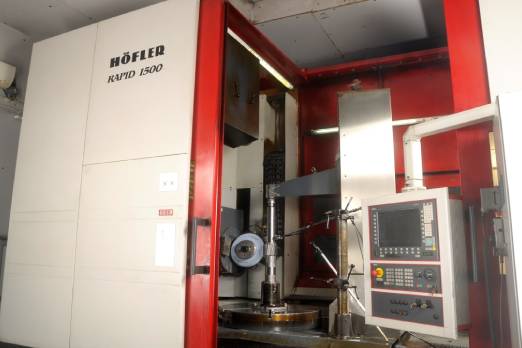

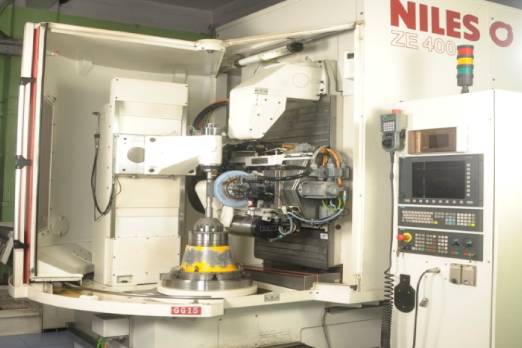

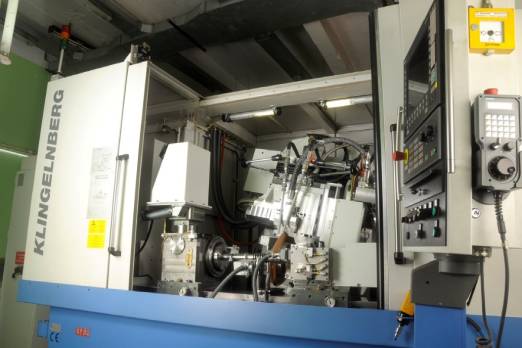

Gear Grinding

Module: 1 to 25, Max. Diameter – 1240 mm, Max. face width - 900 mm. (Spur)

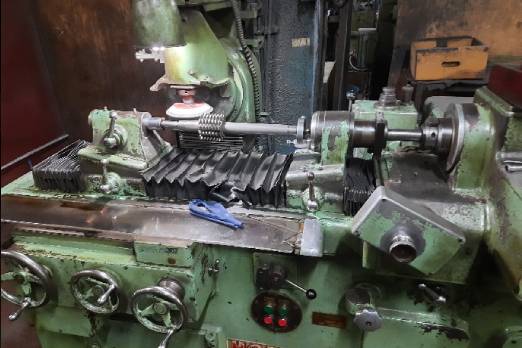

Worm Thread Grinding

Max. Diameter – 350 mm, Max. length – 2800 mm.

TOOTH GRINDING

Capacity

3500 mm X 3000 mm X 2500 mm

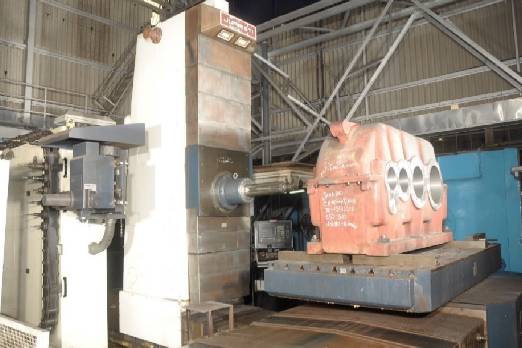

CASE MACHINING

Capacity

Max. weight: 3 tons, Max. Diameter: 1500 mm, Max. length: 3000 mm.

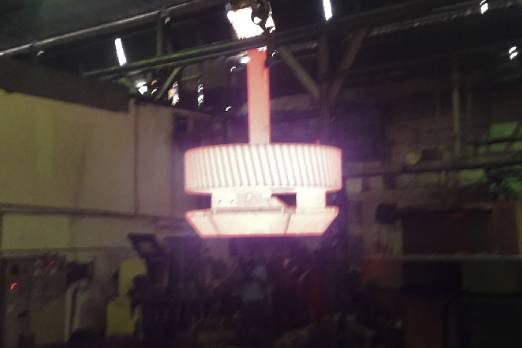

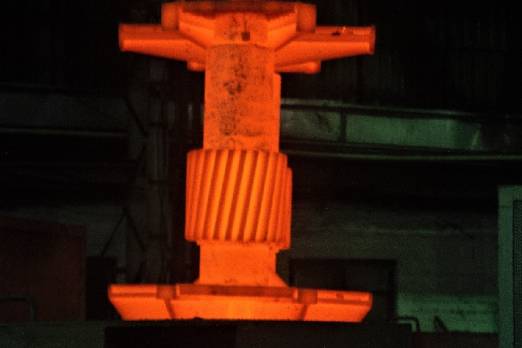

HEAT TREATMENT

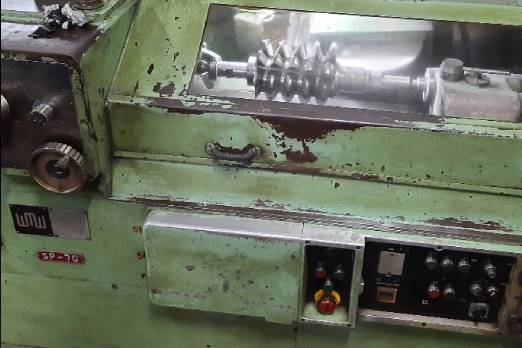

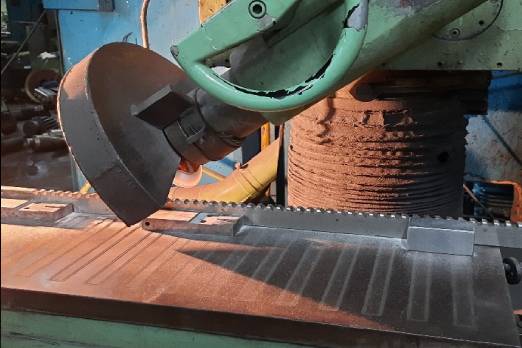

NAW has a state of art tool room where tangential feed worm wheel hob cutters are manufactured. Besides re-sharpening of hobs, broaches, milling cutters, drills, taps etc. are carried out.

Tool Room

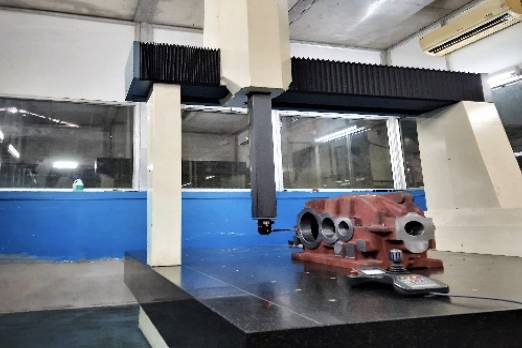

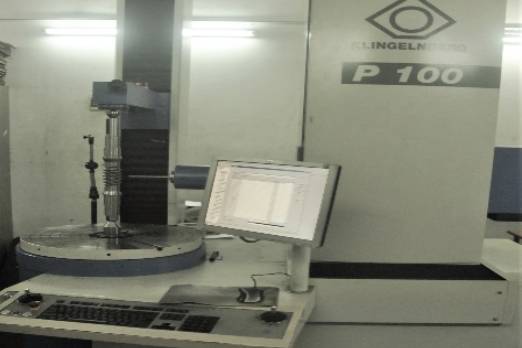

NAW is equipped with sophisticated gear profile testing machines and Co-ordinate Measuring machines to confirm the product Quality at various stages of manufacturing and a well-equipped lab with PMI and Metallurgical Microscope with image Analyser, Ultrasonic flaw detector, Micro hardness tester etc to confirm the metallurgy of the products and materials. Besides NAW has also in house calibration facilities for measuring instruments.

QUALITY CONTROL FACILITIES
