Our Range of Products

Couplings

For connecting Prime Mover with the Gearbox and/or Gearbox with Driven Machinery, Flexible Couplings are manufactured and supplied along with the Gearbox, if desired. The Pin and Bush type of Couplings are manufactured under the brand name of "FLEXIMAX" whereas the Geared Couplings are manufactured under the brand name of "ALLMAX". The product range of "ALLMAX" and "FLEXIMAX" Couplings covers the power capacity of full range of Gearboxes.

Range of Coupling manufactured by New Allenberry Works includes the following

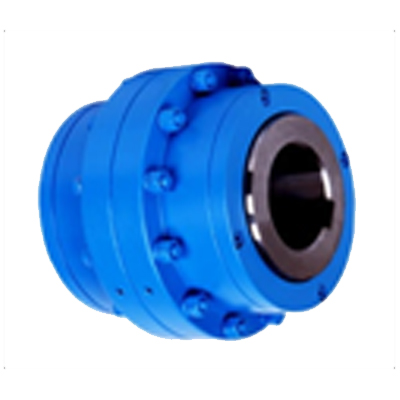

Curved Tooth Gear Coupling(Allmax)

ZNR Series

Size: ZNR 10 – ZNR 160
Torque range: 170 Kgm to 108000 Kgm

Features

These Gear couplings can withstand parallel and angular misalignment of shafts to be coupled. They have crowned external teeth on hub and straight internal teeth on sleeve.
The gears are having 30o Pressure angle for involute teeth that ensures reliable self centering of the couplings.

NGC Series

Size: NGC-10 to NGC 150
Torque range: 107 kgm to 34750 Kgm

Features

These Gear couplings can withstand parallel and angular misalignment of shafts to be coupled. The crowning of teeth allows parallel and angular misalignment ( ± 0.5o) of shafts to be coupled.

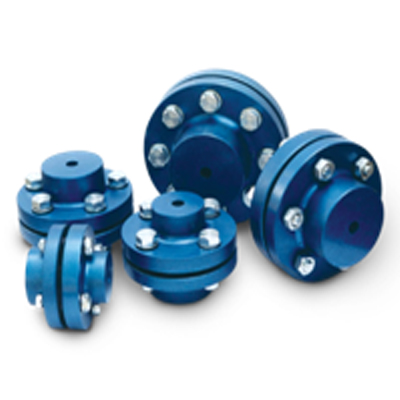

Pin Type Flexible Coupling (Fleximax)

Size: C 1 to C 45
Torque range: 3.4 Kgm to 11,996 kgm

Download Catalogue
